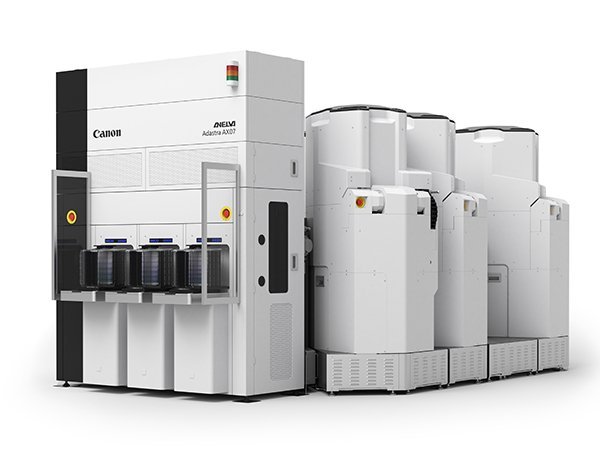

"Adastra" Product family for the manufacturing of semiconductor and electronic devices

Adastra is a next-generation manufacturing system for semiconductors and electronic devices that integrates our advanced thin-film deposition technologies, features a space-saving design with enhanced usability, and minimizes environmental impact.
Information

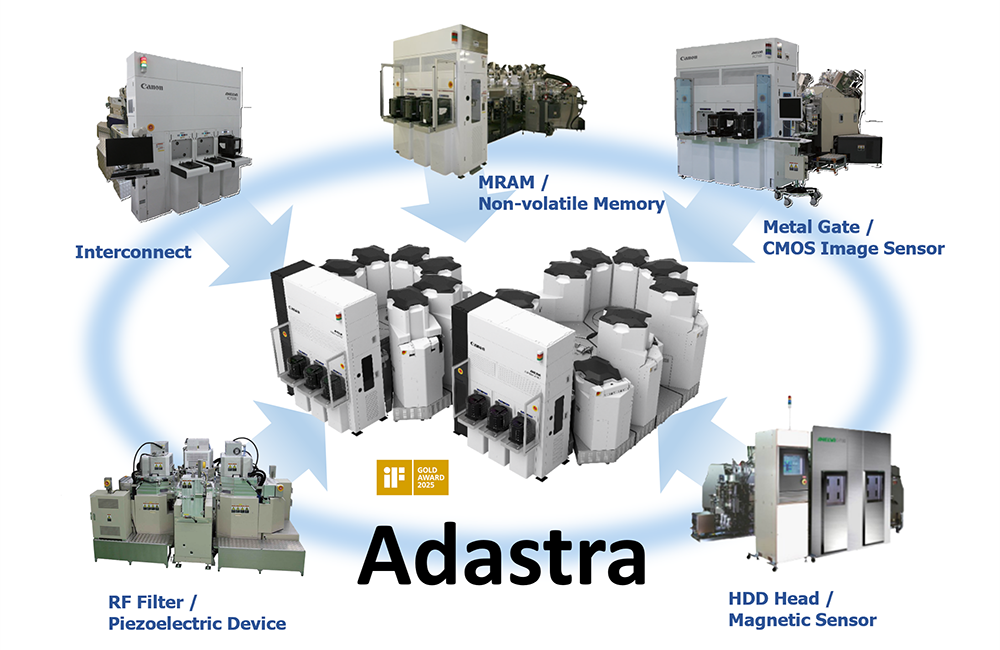

- Integration of Film Deposition Technologies and Flexible Equipment Configuration
Adastra allows users to select technologies tailored to their specific requirements. Its flexible configuration supports a broad range of applications, from R&D to high-volume production, ensuring seamless process transfer.

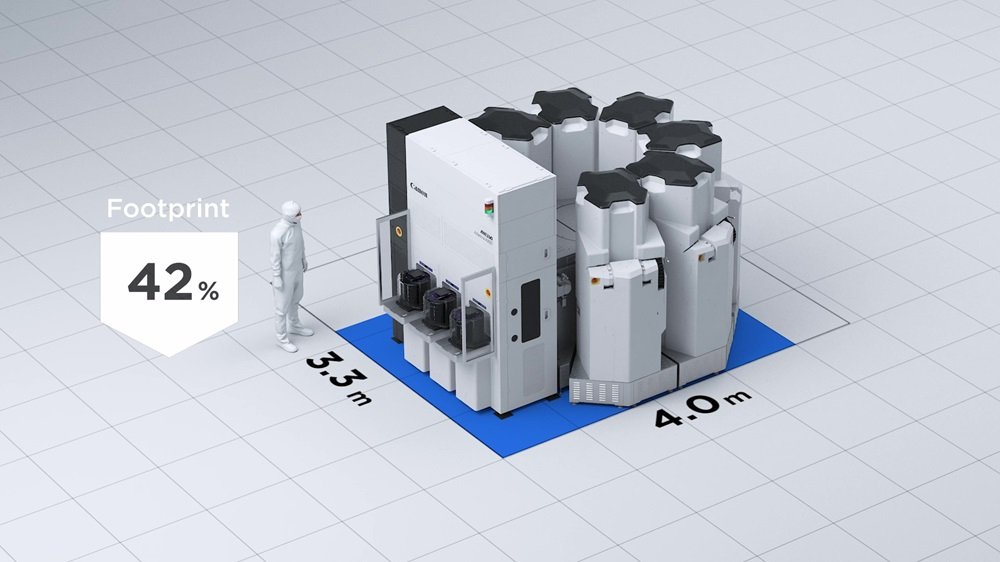

- Space-saving Design
Adastra achieves a significant 42% reduction in footprint by miniaturizing its modules compared to conventional equipment.

- Eco-friendly
Cooling water consumption is reduced by 55% through the use of a recirculating system instead of facility water. These improvements collectively cut CO2 emissions by 18%.

- Usability
Workability during maintenance tasks, such as shield replacement, is enhanced through ergonomic design. Real-time equipment monitoring enables predictive maintenance planning.
